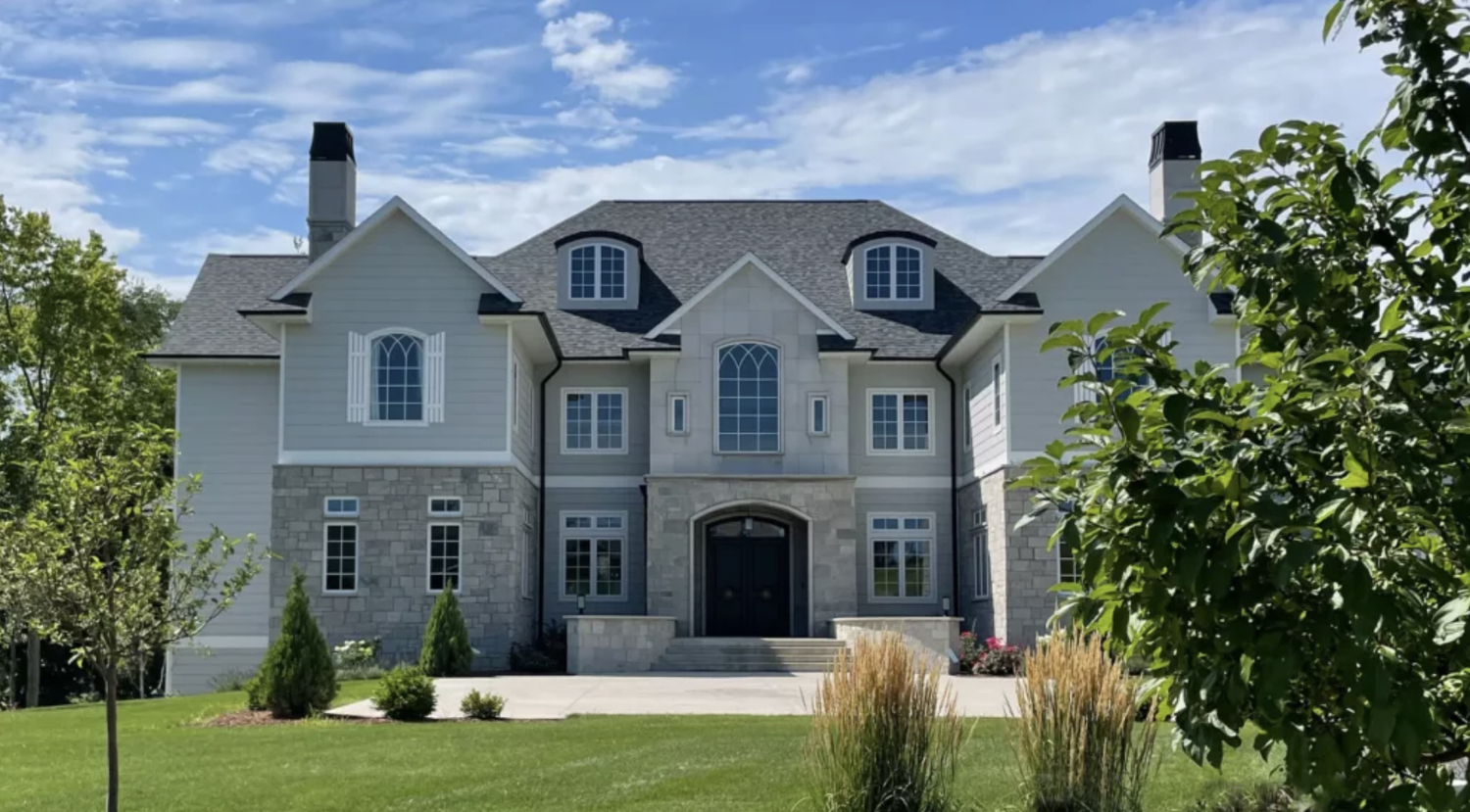

Fond du Lac Installation Photos
Explore All 13 Installations
Fond du Lac
Fond du Lac Specifications and Project Support
- Color
- Creamy buff and warm khaki-gray, with darker ash stones for contrast.
- Stone
- Limestone
- Origin
- United States
- Density
- 176.6 lb/ft³ASTM C97
- Absorption
- 0.31%ASTM C97
Specifying Fond du Lac for a project? We will help you choose the right pieces, finishes and edges, send samples, and work through the details with you.
Get specification helpLab results to ASTM standards, from the quarry's test report.
| Water absorptionASTM C97 | 0.31% |
|---|---|
| DensityASTM C97 | 176.6 lb/ft³ |
| Bulk specific gravityASTM C97 | 2.83 |
| Compressive strengthASTM C170 | 35,800 psi dry, 30,000 psi wet |
| Modulus of ruptureASTM C99 | 3,770 psi dry, 3,500 psi wet |
| Flexural strengthASTM C880 | 1,780 psi dry, 1,730 psi wet |
| Thin veneer weight | 13.7 lb per sq ft |
| Full veneer coverage | 35-40 sq ft per ton |
Thin Veneer · Ashlar
Rectangles in set heights, laid in level courses with fine joints.
Thin Veneer · Ashlar
- Height
- 2 1/4", 5", 7 3/4", 10 1/2"
- Length
- 6" to 20"
- Thickness
- 3/4" to 1 1/4"
- Face
- Split
- Edge
- Sawn Heights, Chopped Ends

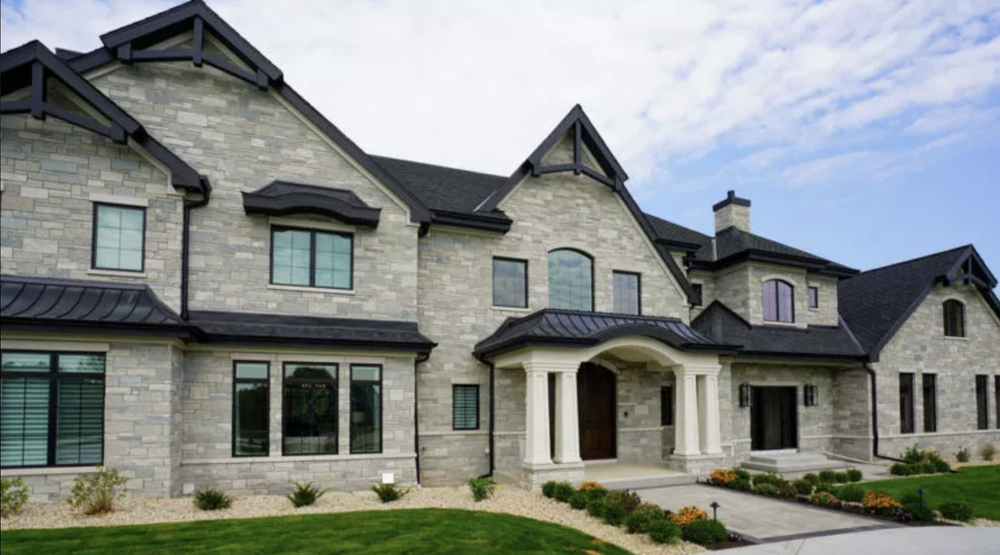

Full Veneer · Ashlar
Rectangles in set heights, laid in level courses with fine joints.
Full Veneer · Ashlar
- Height
- 2 1/4", 5", 7 3/4", 10 1/2"
- Length
- 8" to 48"
- Thickness
- 3" to 5"
- Face
- Split
- Edge
- Sawn Heights, Chopped Ends

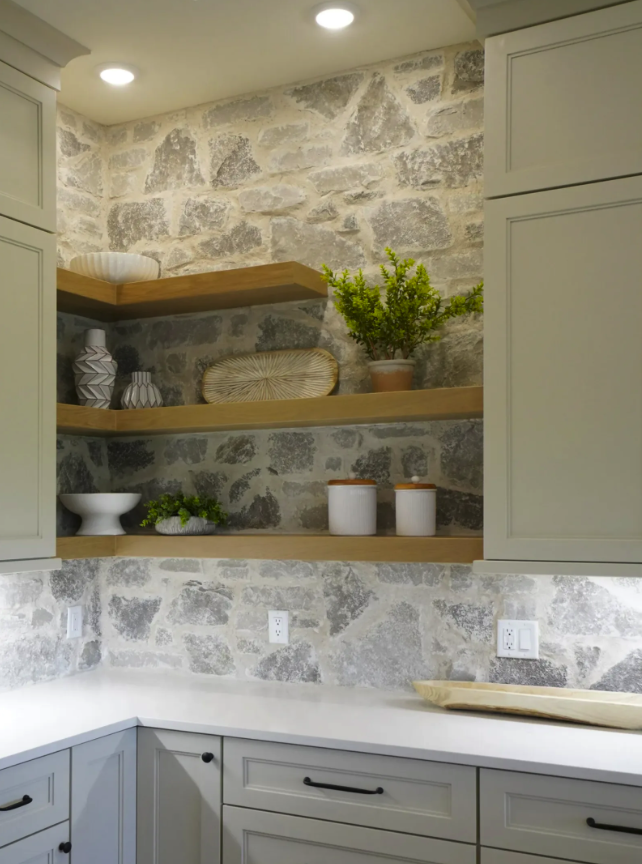

Pavers · Mosaic
Irregular pieces, fitted together underfoot.
Pavers · Mosaic
Custom
A custom piece or a new use for Fond du Lac? Tell us.

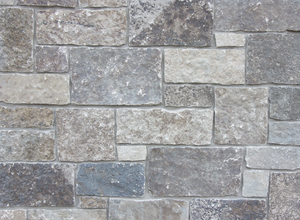

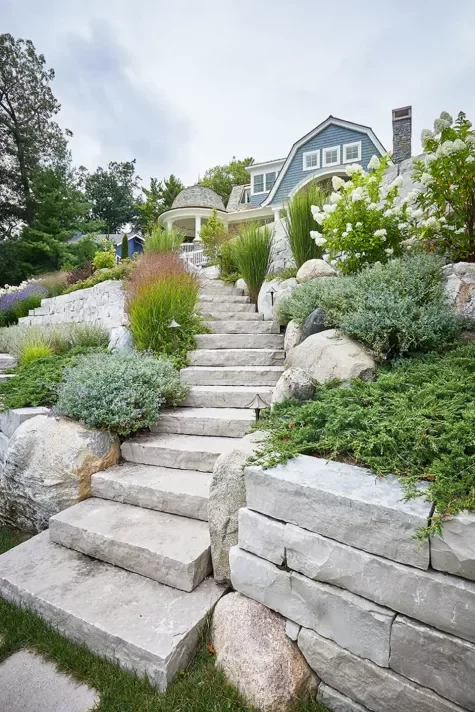

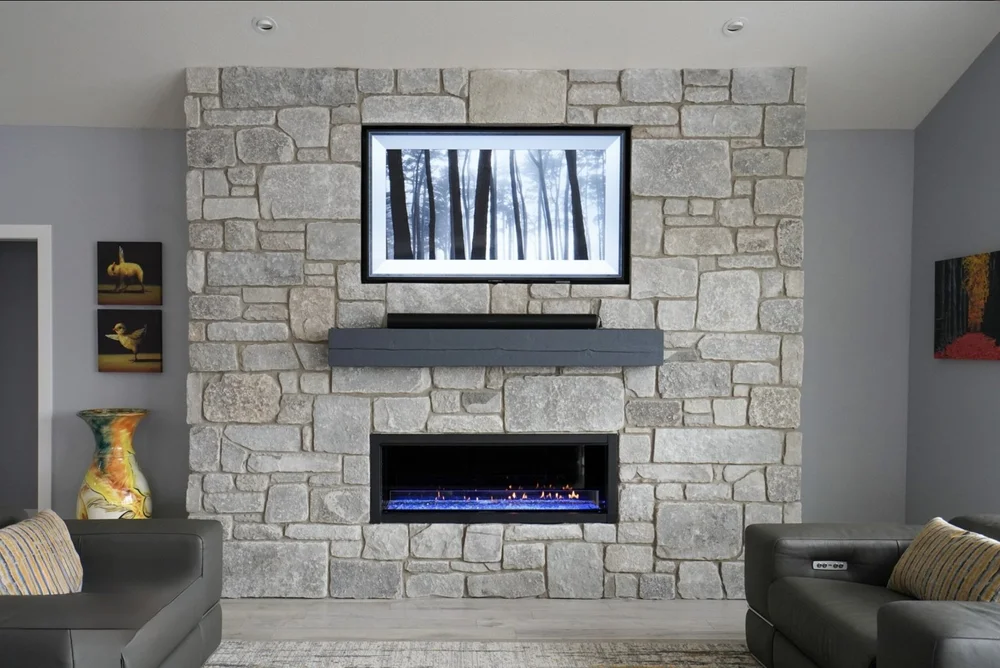

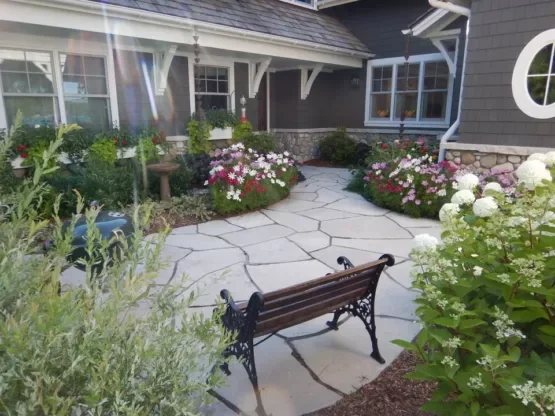

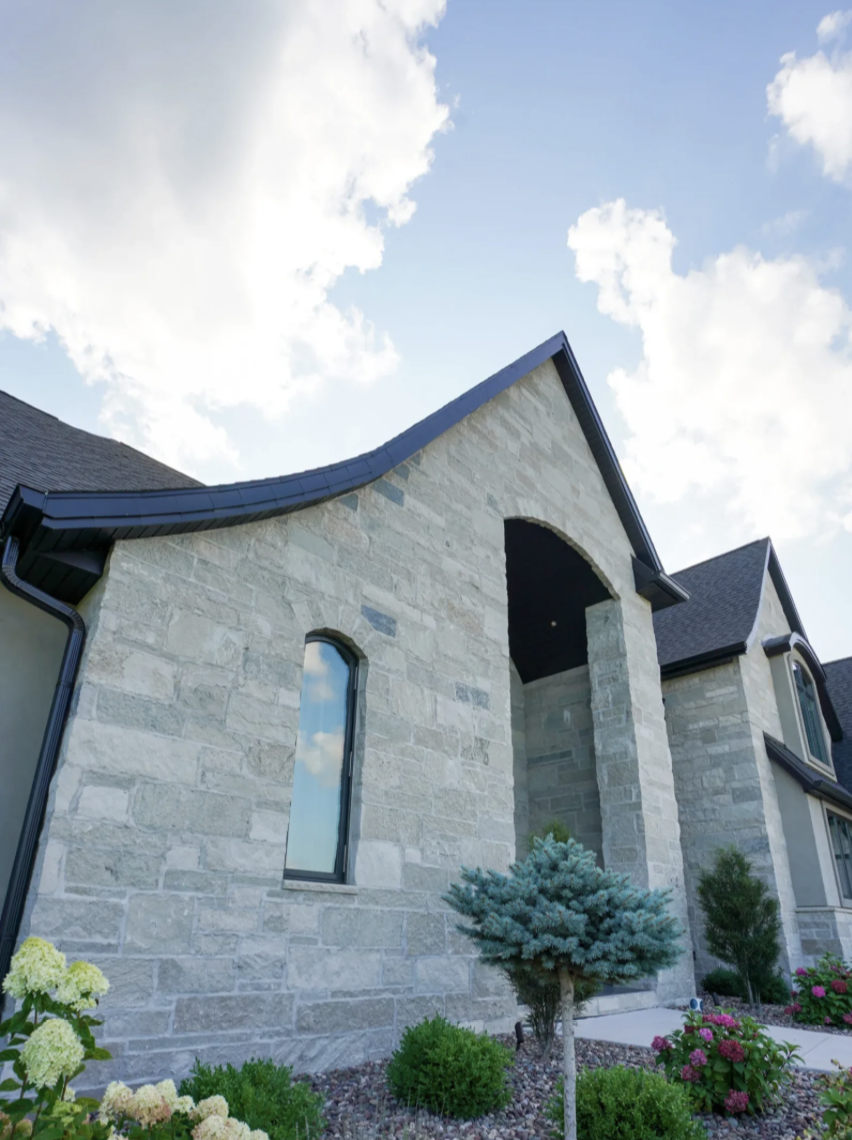

Fond du Lac is a dense limestone in creamy buff and warm khaki-gray, with deeper ash pieces scattered through for contrast. Its ashlar lays in long, low courses, the light stones carrying the warmth while the dark ones keep the wall from going soft. Random mosaic paving and stair treads bring it underfoot and up the steps.
