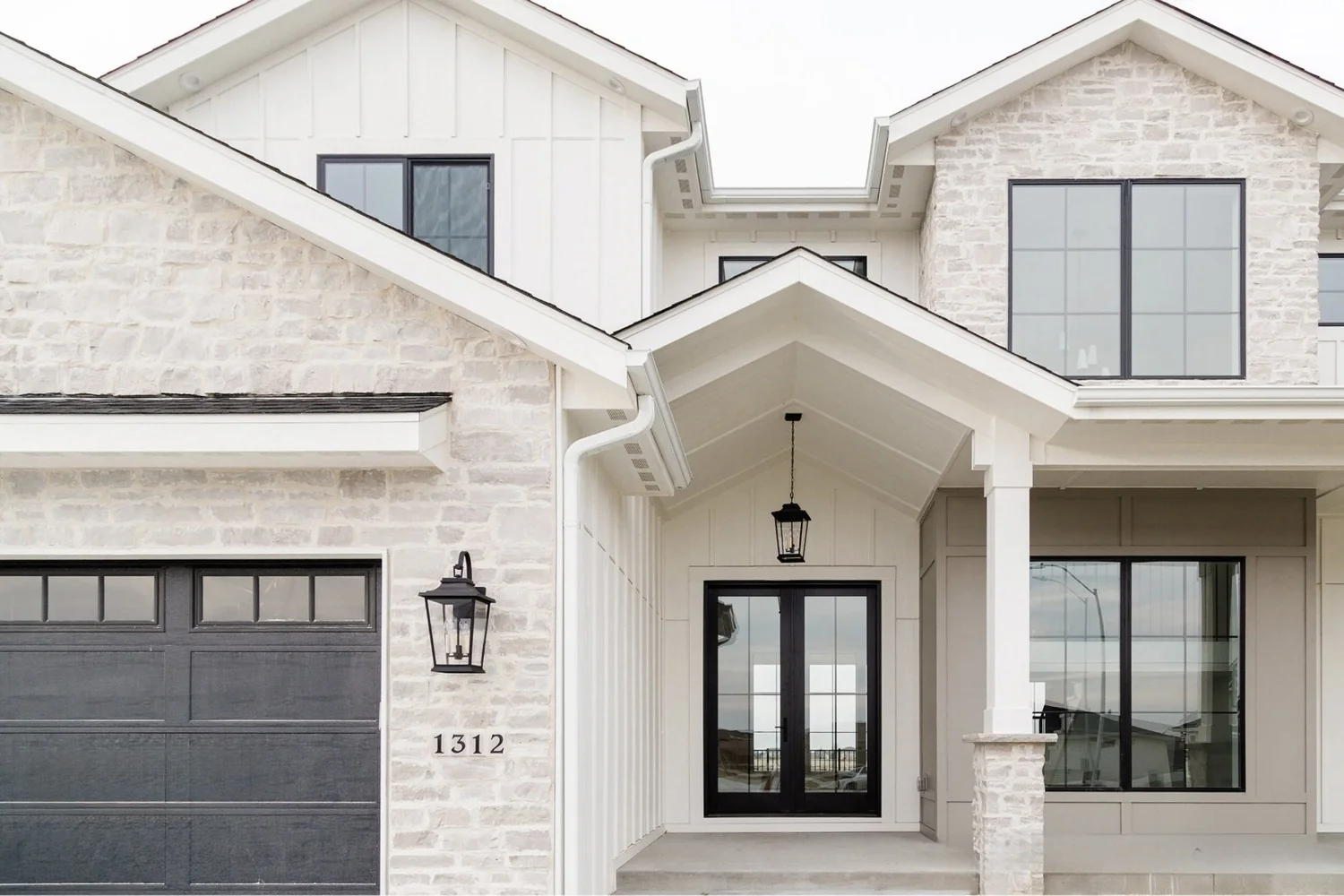

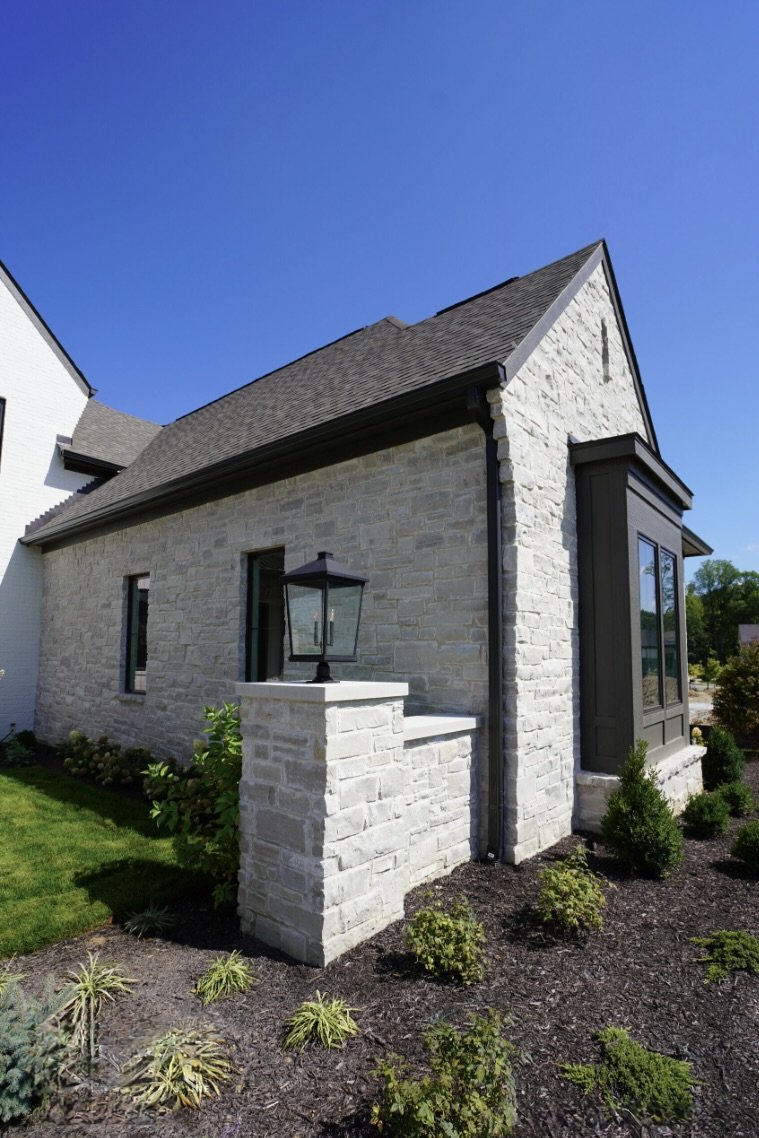

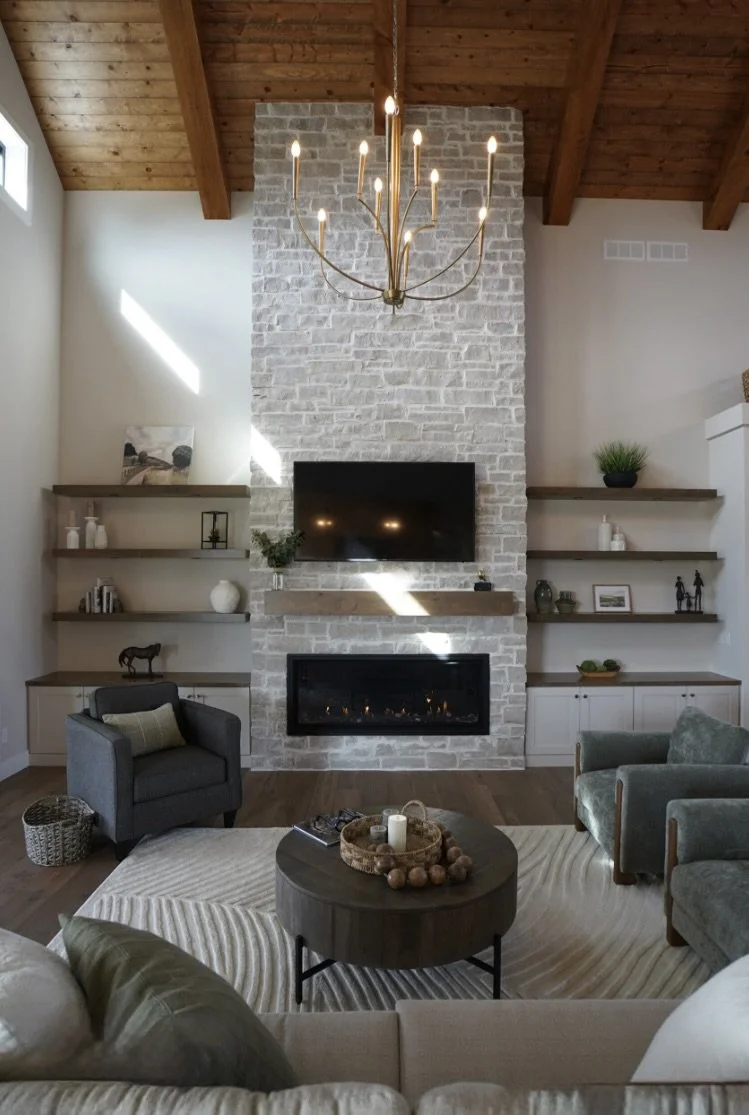

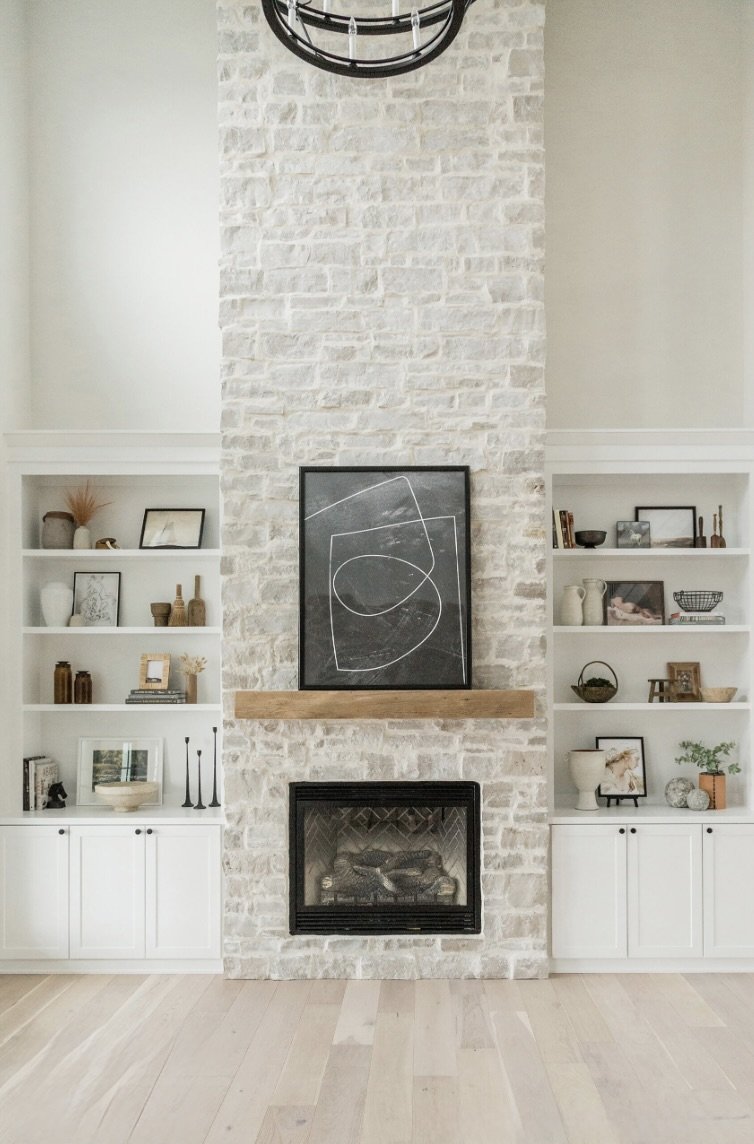

Byron Installation Photos
Explore All 5 Installations
Byron
Byron Specifications and Project Support
- Color
- Buffs and tans drifting through soft gray, with shell traces in the bedding.
- Stone
- Limestone
- Origin
- United States
- Density
- 176.6 lb/ft³ASTM C97
- Absorption
- 0.31%ASTM C97
Specifying Byron for a project? We will help you choose the right pieces, finishes and edges, send samples, and work through the details with you.
Get specification helpLab results to ASTM standards, from the quarry's test report.
| Water absorptionASTM C97 | 0.31% |
|---|---|
| DensityASTM C97 | 176.6 lb/ft³ |
| Bulk specific gravityASTM C97 | 2.83 |
| Compressive strengthASTM C170 | 35,800 psi dry, 30,000 psi wet |
| Modulus of ruptureASTM C99 | 3,770 psi dry, 3,500 psi wet |
| Flexural strengthASTM C880 | 1,780 psi dry, 1,730 psi wet |
| Thin veneer weight | 14.9 lb per sq ft |
| Full veneer coverage | 35-40 sq ft per ton |

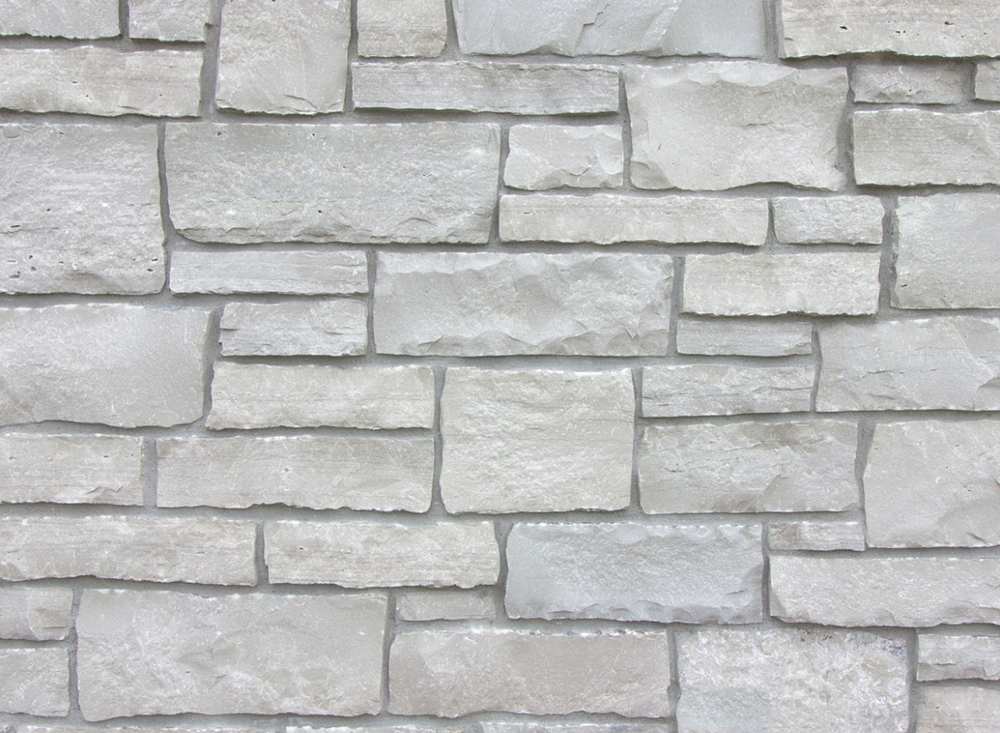

Thin Veneer · Ashlar
Rectangles in set heights, laid in level courses with fine joints.
Thin Veneer · Ashlar
- Height
- 2" to 9"
- Length
- 6" to 20"
- Thickness
- 3/4" to 1 1/4"
- Face
- Split standard
- Edge
- Chopped
Full Veneer · Ashlar
Rectangles in set heights, laid in level courses with fine joints.
Full Veneer · Ashlar
- Height
- 2" to 9"
- Length
- 8" to 36"
- Thickness
- 3" to 5"
- Face
- Split standard
- Edge
- Chopped
Custom
A custom piece or a new use for Byron? Tell us.

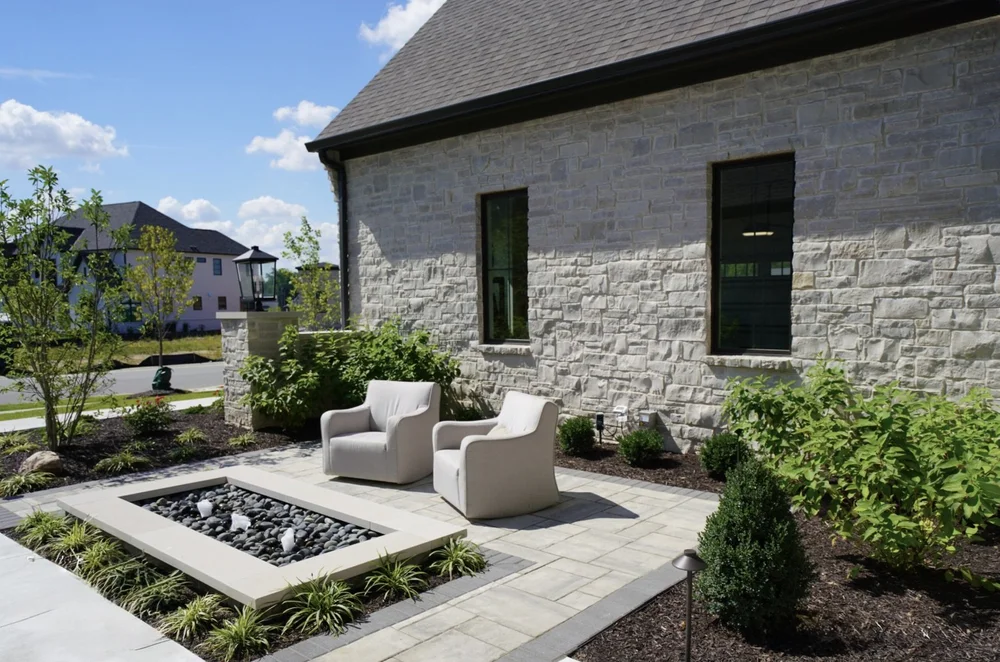

Featured Projects
A few of our favorite spaces built with Byron.
Byron is limestone in buffs and tans drifting through soft gray, with the seams and shell traces of its bedding written plainly on the face. Its ashlar comes in naturally varied heights, so a wall lays up relaxed, as if it settled into place over years. Split faces keep it loose, sawn and honed faces tailor it, and it comes thin or full.
